Oversized Bushing Pack for 1st Gen S10/ OBS Ford Customizable Kit (4 Bushings)

IN STOCK!

One Removal. One Install. No Guesswork.

This pack of bushings is for 1st Gen S10s

When replacing door bushings, you don’t know the true condition of the hinge plate until the door is off.

Many 1st Gen S10 trucks have hinge holes that are worn beyond what a standard bushing will fix. If you only have one size available and the hole is damaged, the repair stops.

This pack eliminates that risk.

You’ll have oversized bushings on hand so you can evaluate the hinge condition and install the correct bushings immediately, without reinstalling the door and waiting on additional parts.

Made from abrasive resistant and strong stainless steel. Engineered and built to last a lifetime of abuse.

100% manufactured at our facility in the United States.

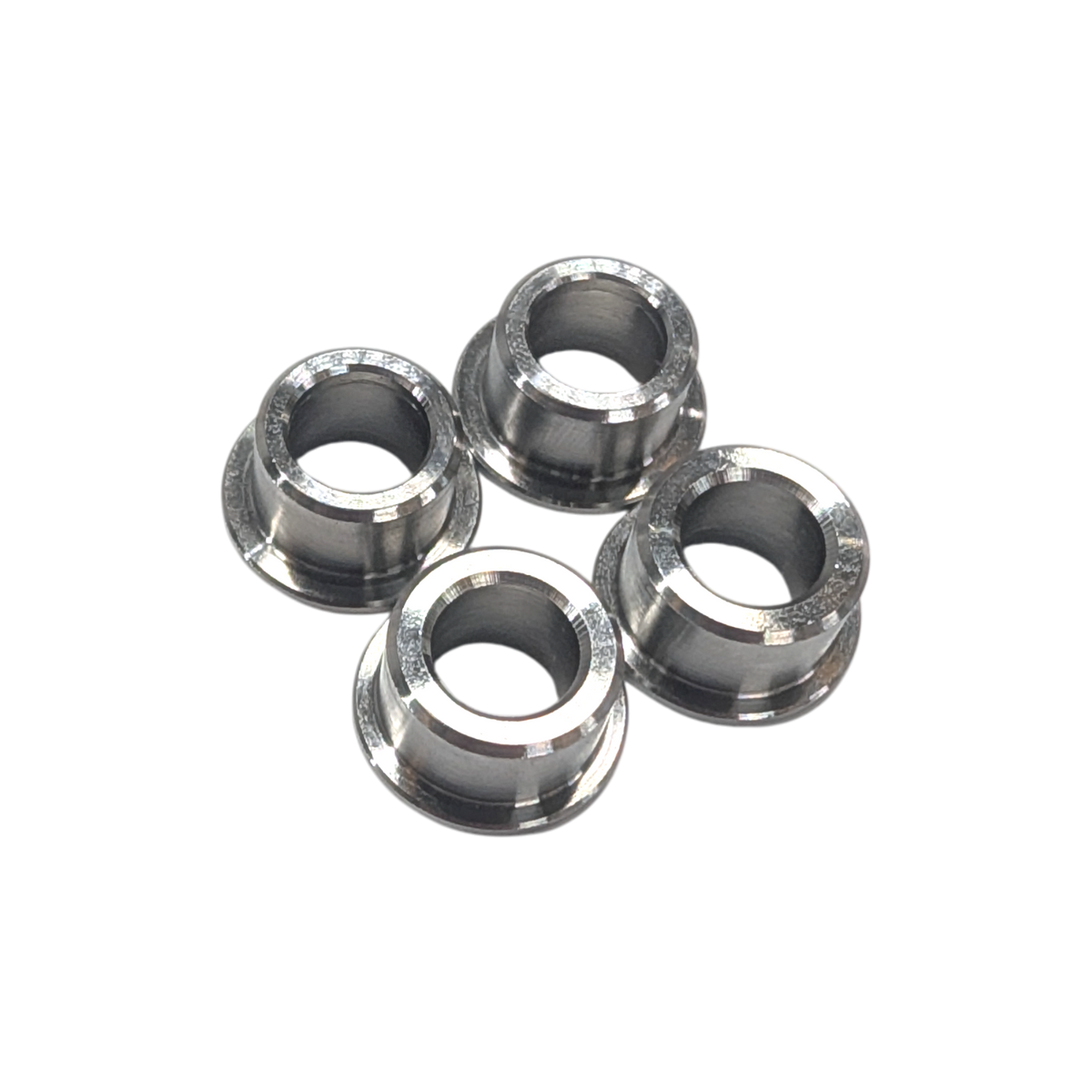

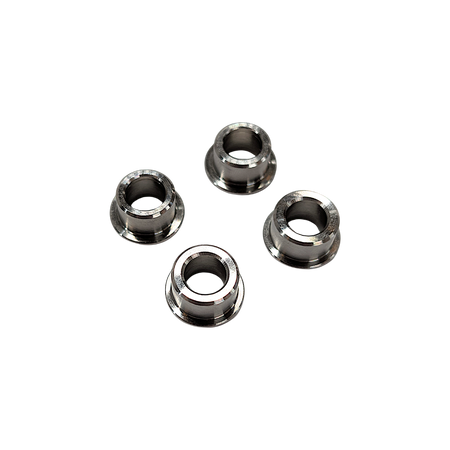

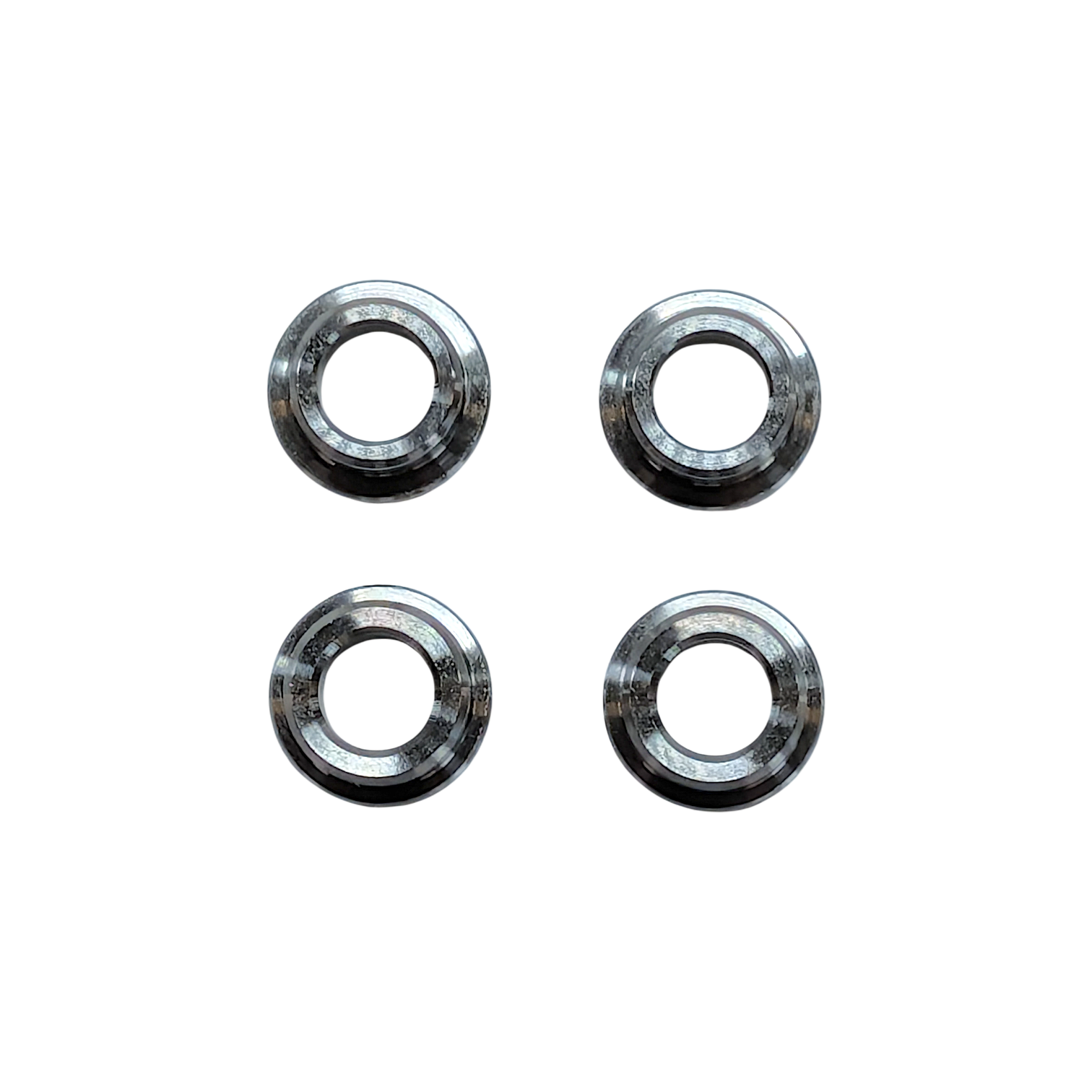

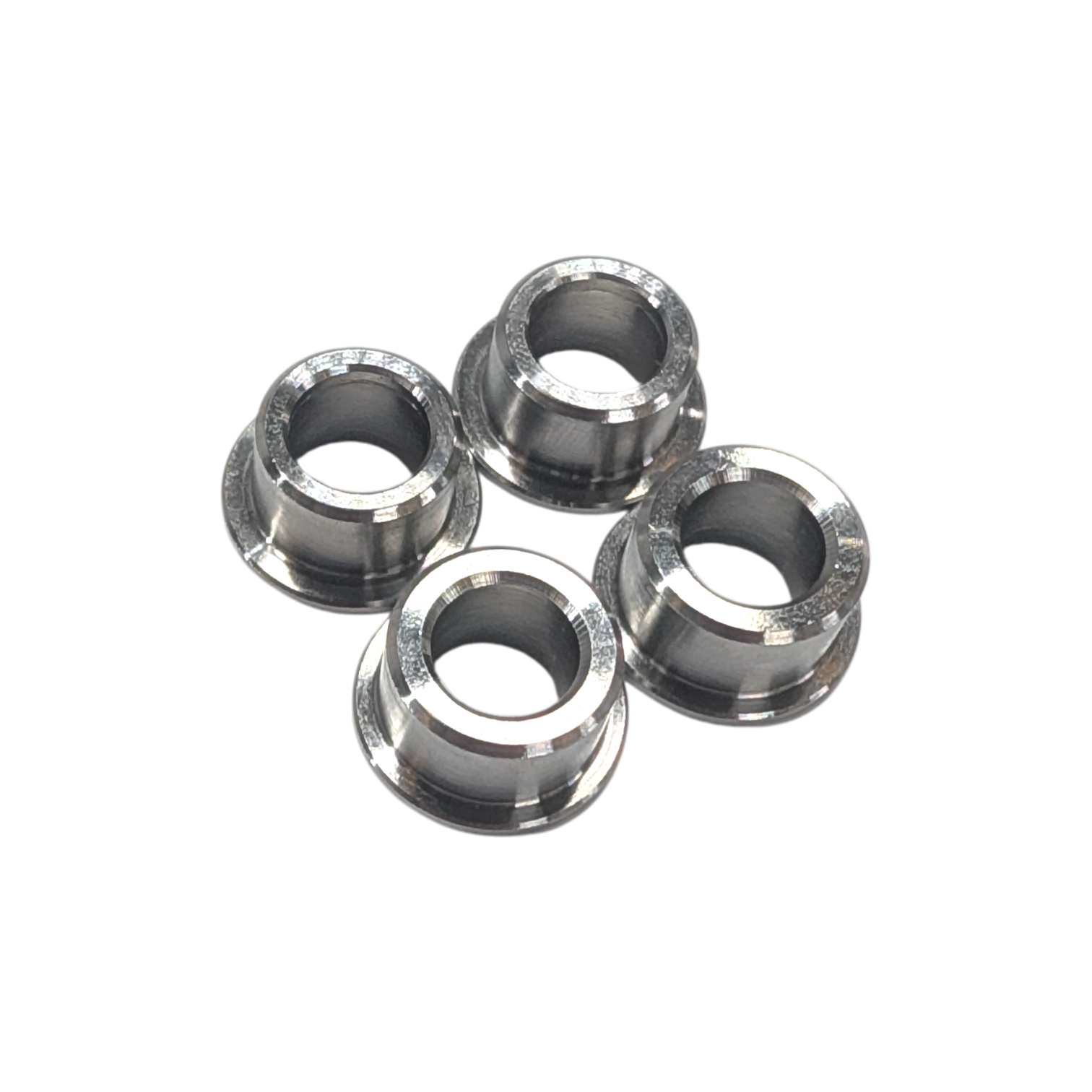

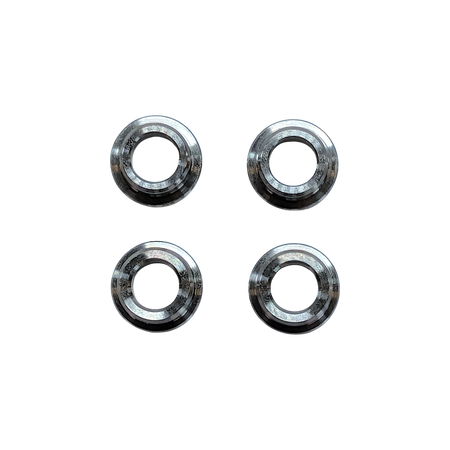

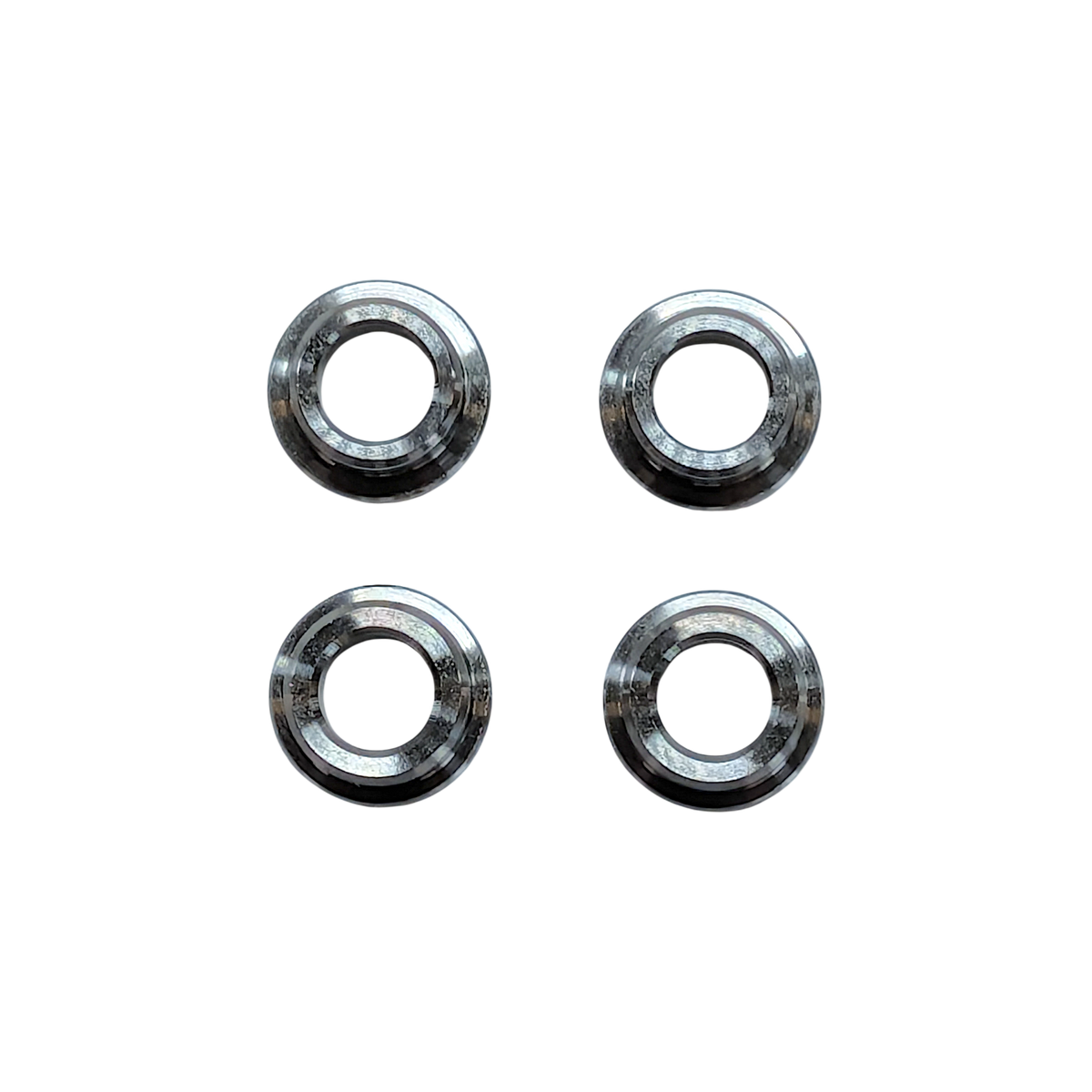

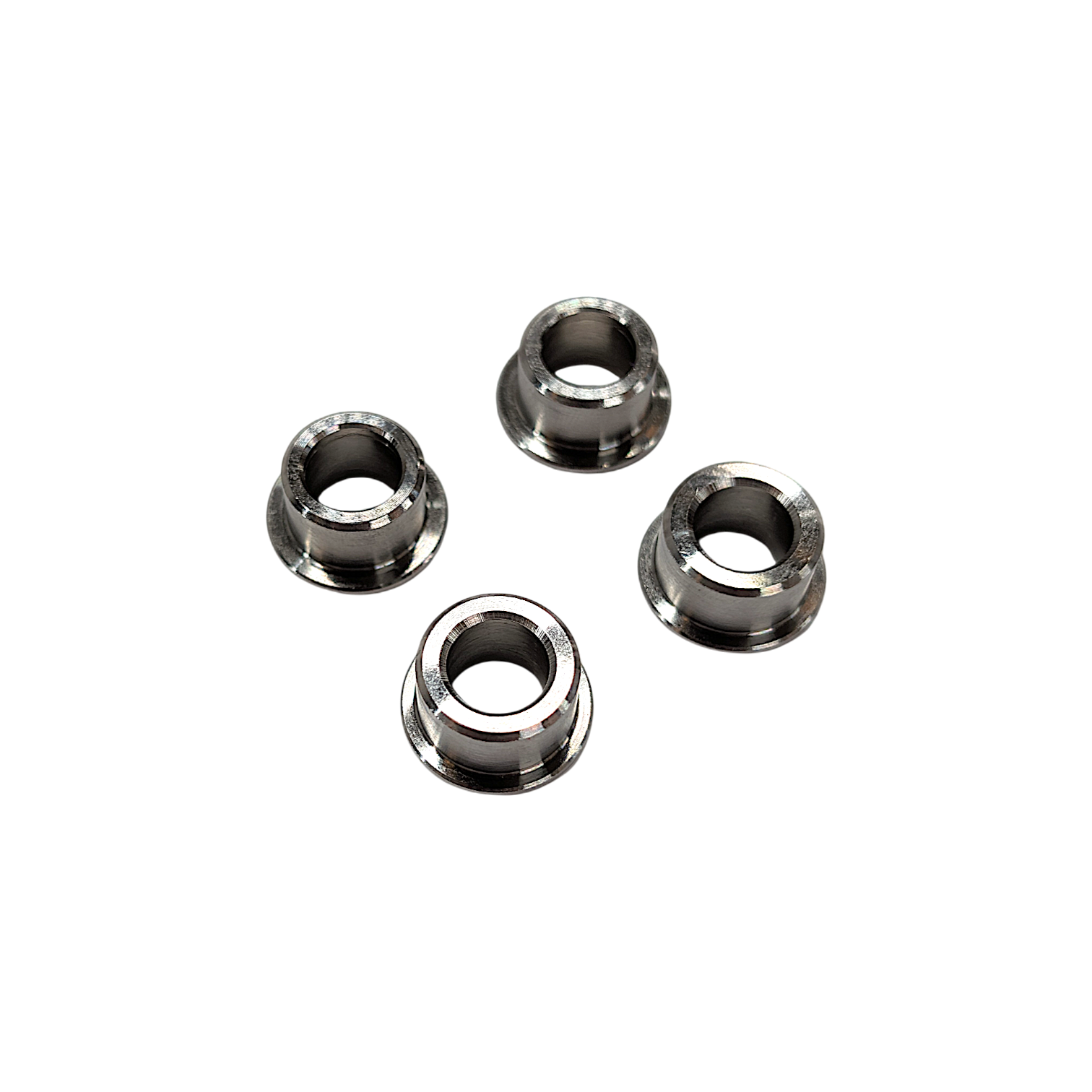

What This Pack Includes:

Total - 4 Bushings

2 — +.02" Oversize
2 — +.06" Oversize

These bushings are compatible with:
- Stock Pins
- Corresponding EnduraPin Pins

Bushing Size Guidance:

Standard Size
Use when the hinge bore shows no visible elongation or wall damage.

+.02" Oversize
For moderately worn holes where standard bushings fit loosely.

+.06" Oversize
For severely worn or egg-shaped holes.

If the hinge bore is ovaled or irregular, we recommend applying JB Weld around the outer diameter during installation to create a rigid bond between the hinge plate and the bushing.

Oversized Bushings Drill Bit Recommendations:

+.02": 1/2" Drill Bit

+.06": 17/32" Drill Bit

Note: You may still need to open these holes up slightly with a round file or die grinder. Remove a small amount of material and test fit the bushing constantly. You will want the bushing to fit in tightly.
